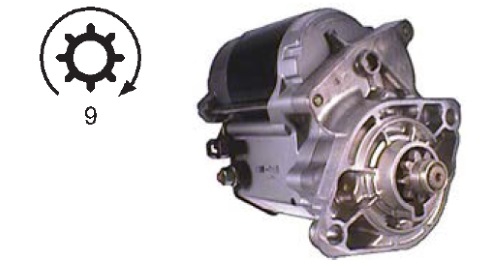

Anlasser 12V/1.4kW 9z f.Toro Rasenmäher Fairway Mower Reelmaster 3100D 5200D 5210 5400D 5410 5500D 5510 5610 5600D 6700D m.21,5

Anlasser 12V/1.4kW 9z f.Toro Rasenmäher Fairway Mower Reelmaster 3100D 5200D 5210 5400D 5410 5500D 5510 5610 5600D 6700D m.21,5

Anlasser 12V/1.4kW 9z f.Toro Rasenmäher Fairway Mower Reelmaster 3100D 5200D 5210 5400D 5410

5500D 5510 5610 5600D 6700D  m.21,5HP 28HP 35HP 35,5HP 44,2HP 46HP Kubota Diesel

Groundsmaster 228D 328D 3280D 3500D 7200 7210

19269-63013 19269-63012 19269-63011 19269-63010 19269-19010 16611-63013

16611-63012 16611-63011 1661-63010

Bestellnummer:111021

Ref.-Nr.: (Ref.-Nr.dienen lediglich Vergleichszwecken)

Denso 228000-7671 228000-3660 228000-1531 228000-1530 228000-0991 228000-0990

228000-0150 128000-9051 128000-9050 128000-0050 028000-4520

Kubota 77700-06123 19269-63013 19269-63012 19269-63011 19269-63010 19269-19010 16611-63013

16611-63012 16611-63011 1661-63010

Servicing: Kubota, Various Agriculture Vehicles

B+ M8, Length 209.50, Drive type Steel,Gear type GR, Mount. holes 2 (0) A: 66.00 B: 18.00 mm

Gewicht: 4,75 kg

Volt 12, Kw 1.4, Anzahl der Zähne 9, Umlaufsrichtung CR, Getriebetyp GR, Montageflansch 66.00, B+ M8, Ritzelabs. 18.00,

 Löcher 8.90, Loch 2 8.90, Abs./Hinten 179.60, Abs./Vorne 30.80, Halterungen Nein, Abstand mm 110.00,

Gesamtlänge mm 209.50, Ritzeltyp Stahl, Wasserdicht Nein, Öldichtung Nein

Case TRENCHERS
460 01-94 Kubota V1505-B Dsl Denso System ND 12 1.4kw 228000-1530 SND0474

MAXI-SNEAKER 01-93 Kubota V1505-B Dsl Denso System ND 12 1.4kw 228000-1530 SND0474

UNI-LOADERS

1825B 99-97 Kubota Engine Denso System ND 12 1.4kw 228000-1530 SND0474

1818 93-87 Kubota Engine Denso System ND 12 1.4kw 128000-0050 SND0264

1825 97-87 Kubota Engine Denso System ND 12 1.4kw 128000-0050 SND0264

CLARK SKID STEER LOADERS
611 81-75 Deutz F2L411 Delco System DR 12 20MT 1108692 SNK0003
631 82-77 Deutz F2L411 Delco System DR 12 20MT 1108692 SNK0003

643 92-89 Kubota D1402 Delco System DR 12 28MT 1113273 SNK0003
643 88-84 Kubota D1402 Delco System DR 12 27MT 1998455 SNK0003
643 83-81 Kubota D1402 Delco System DR 12 20MT 1108692 SNK0003
721 81 Deutz 411 Delco System DR 12 20MT 1108692 SNK0003

743 90-89 Kubota V1702 Delco System DR 12 28MT 1113273 SNK0003
743 88-84 Kubota V1702 Delco System DR 12 27MT 1998455 SNK0003
743 83-81 Kubota V1702 Delco System DR 12 20MT 1108692 SNK0003
743B 93-91 Kubota V1702 Delco System DR 12 27MT 1998455 SNK0003
743B 93-91 Kubota V1702 Delco System DR 12 28MT 1113273 SNK0003
753 90-On Kubota V1702 Delco System DR 12 28MT 1113273 SNK0003
753 90-On Kubota V2203E Delco System DR 12 28MT 1113273 SNK0003

800 73 Perkins 4-108 Delco System DR 12 20MT 1107588 SNK0003
825 82-74 Perkins 4-108 Delco System DR 12 20MT 1107588 SNK0003
833 81-80 Perkins 4-165 Delco System DR 12 20MT 1107588 SNK0003

843 81 Perkins 4-154 Delco System DR 12 20MT 1108692 SNK0003

1600 88-86 Kubota V1702 Delco System DR 12 27MT 1998455 SNK0003
1600 89-On Kubota V1702 Delco System DR 12 28MT 1113273 SNK0003

TRACTOR SHOVELS
12B 70-67 Waukesha 180 Engines Diesel Engine DR 12 20MT 1107588 SNK0003
CKL340 72-69 Waukesha 180-DLC Delco System DR 12 20MT 1107588 SNK0003

GEHL SKID STEER LOADERS

SL3825 91-On Kubota V1305E Denso System ND 12 1.4kw 228000-1530 SND0474

KUBOTA EXCAVATORS

KH41 88-On Kubota D950 17.8HP Dsl Serial #661953-On ND 12 1.4kw 128000-0050 SND0264
KH61 88-On Kubota D950BH 22.2HP Dsl Serial #661953-On ND 12 1.4kw 128000-0050 SND0264
KX41 92-On Kubota D1105BH 22HP Dsl Serial #363590-On ND 12 1.4kw 228000-0990 SND0264
KX41 92-On Kubota D1105BH 22HP Dsl To Serial #363589 ND 12 1.4kw 128000-0050 SND0264
KX71H 03-Bk Kubota V1505BH 32.2HP Dsl Serial #363590-On ND 12 1.4kw 228000-0990 SND0264
KX71H 03-Bk Kubota V1505BH 32.2HP Dsl To Serial #363589 ND 12 1.4kw 128000-0050 SND0264

KX41-3 05-Bk Kubota D902EBH 17HP Dsl Denso System ND 12 1.4kw 128000-0050 SND0264

LOADERS
R310 89-On Kubota V1305 26.6HP Dsl Serial #262989-On ND 12 1.4kw 128000-0050 SND0264

MISC. EQUIPMENT
D850-B1 Engine 87-On Denso System ND 12 1.4kw 128000-0050 SND0264

TRACTORS - SUBCOMPACT
BX22 02-On Kubota D905E-BX 22HP Dsl Denso System ND 12 228000-6321 SND0289
BX1500D 05-Bk Kubota Z602E Denso System ND 12 1.4kw 128000-0050 SND0264
BX1800D 00-On Kubota D722E-BX 18HP Dsl Denso System ND 12 1.4kw 228000-0991 SND0264
BX1830D 05-Bk Kubota D722E-BX 18HP Dsl Denso System ND 12 1.4kw 128000-0050 SND0264
BX2200D 00-On Kubota D905E-BX 22HP Dsl Denso System ND 12 228000-6321 SND0289
BX2230D 05-Bk Kubota D902E-BX 22HP Dsl Denso System ND 12 1.4kw 128000-0050 SND0264

Toro MOWERS- FAIRWAY
Groundsmaster 228D 04-01 Kubota 28HP Dsl Denso System ND 12 1.4kw 228000-1530 SND0474
Groundsmaster 328D 09-01 Kubota 28HP Dsl Denso System ND 12 1.4kw 98-9705 SND0474
Groundsmaster 3280-D 09-05 Kubota 28HP Dsl Denso System ND 12 1.4kw 98-9705 SND0474
Groundsmaster 3500-D 09-00 Kubota 35HP Diesel Denso System ND 12 1.4kw 98-9705 SND0474
Groundsmaster 7200 09-07 Kubota 28HP Dsl Denso System ND 12 1.4kw 98-9705 SND0474
Groundsmaster 7210 09-07 Kubota 35HP Diesel Denso System ND 12 1.4kw 98-9705 SND0474
Reelmaster 3100-D 09-99 Kubota 21.5HP Dsl Denso System ND 12 1.4kw 98-9705 SND0474
Reelmaster 5200-D 06-98 Kubota 28HP Dsl Denso System ND 12 1.4kw 98-9705 SND0474
Reelmaster 5210 09-06 Kubota 28HP Dsl Denso System ND 12 1.4kw 98-9705 SND0474
Reelmaster 5400-D 06-98 Kubota 35.5HP Dsl Denso System ND 12 1.4kw 98-9705 SND0474
Reelmaster 5410 09-06 Kubota 35.5HP Dsl Denso System ND 12 1.4kw 98-9705 SND0474
Reelmaster 5500-D 06-00 Kubota 35.5HP Dsl Denso System ND 12 1.4kw 98-9705 SND0474
Reelmaster 5510 09-06 Kubota 35.5HP Dsl Denso System ND 12 1.4kw 98-9705 SND0474
Reelmaster 5610 09-06 Kubota 44.2HP Dsl Denso System ND 12 1.4kw 98-9705 SND0474
Reelmaster 6500-D 09-97 Kubota 46HP Dsl Denso System ND 12 1.4kw 98-9705 SND0474
Reelmaster 6700-D 09-00 Kubota 46HP Dsl Denso System ND 12 1.4kw 98-9705 SND0474
