Nichts gefunden? Rufen Sie an. Wir beschaffen das Ersatzteil.
Bestellnummer:113478
Ref.-Nr.: (Ref.-Nr.dienen lediglich Vergleichszwecken)
BOSCH | 0001367081 | BOSCH | 0001230005 |
BOSCH | 0001230003 | CARGO | 113460 |
DIXIE | S-6532 | ISKRA | AZE4620 |
ISKRA | 11.131.221 | ISKRA | AZE4603 |
ISKRA | 11.131.121 | ISKRA | 11.131.063 |
JOHN DEERE | RE506589 | JOHN DEERE | RE505746 |
JOHN DEERE | RE684701 | JOHN DEERE | RE502156 |
JOHN DEERE | RE60641 | JOHN DEERE | RE501693 |
JOHN DEERE | RE516157 | JOHN DEERE | RE501157 |
LESTER | 17086 | LUCAS | 26024033A |
PIC | 108-278 | VALEO | D7R14 |
VALEO | 455735 | VALEO | 187031 |
WAI | 2-2294-VA | WILSON | 91-20-3530 |
WOOD-UK | STR50264 |
Datenfeldtext | Wert | Datenfeldtext | Wert | Datenfeldtext | Wert | Datenfeldtext | Wert |
Spannung | 12 | kw | 2.8 | Isolierung | N/A | A Montage Flansch | 82.00 |
B Ritzelabstand | 35.00 | E Montage löcher | 10.50 | E Montage loch2 | 10.50 | E Montage loch3 | N/A |
E Montage loch4 | N/A | F Abstand - Hinten | 220.50 | G Abstand - Vorne | 78.00 | H Zahne anzahl | 10 |
I B+ | M10 | Position | 58 | S B- | N/A | Position | N/A |
J Klemme 15a | M5 | Position | 15 | T Klemme 30h | N/A | Position | N/A |
K Gewinde länge | N/A | L Klemme 50 | M5 | Position | 45 | M Montage bügel | No |
N Vorgelege type | DD | O Abstand | 104.50 | O Abstand 2 | N/A | O Abstand 3 | N/A |
O Abstand 4 | N/A | P Umlaufsrichtung | CR | R Total Länge | 303.50 | Anzahl der Montagelöcher | 2 (0) |
Kupplungstyp | Dry | Ritzeltype | Steel | Anlasser type | N/A | Prod. info | BN / OE |
Oil sealed | Ja | Wasserdicht | No | Mass zeichnung | s6_1 | Mass zeichnung | s6_2 |

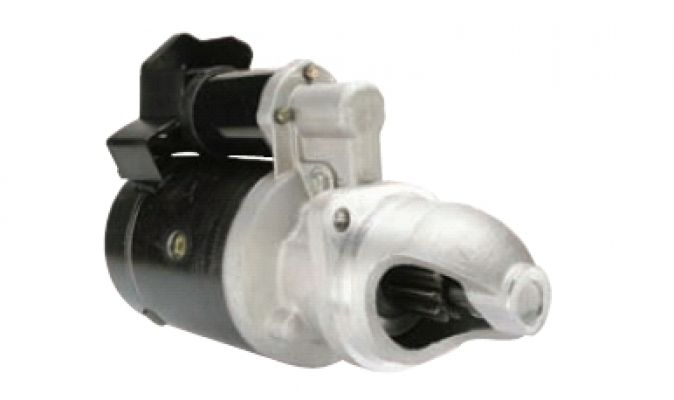

Anlasser 12V/2.8kW 10,11z f.Atlas Copco 0001230005 0001230003 0001223502 AZE4620 AZE4603 11131384 11131221 11131063
Bosch 0001230005 0001230003 0001223502
Iskra AZE4620 AZE4603 11131384 11131221 11131063
John Deere SE501854 RE71505 RE684701 RE63010 RE60641 RE519975 RE516157 RE506589 RE505746 RE502196
RE505746 RE502196 RE502156 RE501693 RE501689 RE501680 RE501347 RE501157 RE500819
Lucas 26024033A
Valeo D7R14 187031
Servicing: Atlas Copco, John Deere
B+ M10, 30h M5, Total length 303.50,Drive type Steel, Gear type DD,Clutch type Dry, Mount. holes 2 (0), Oil sealed
A: 82.50 B: 35.00 mm
Volt 12, Kw 2.8, Anzahl der Zähne 10,11, Umlaufsrichtung CR, Getriebetyp DD/GR, Montageflansch 82.50, B+ M10,
No./mount. holes 2 (0), Ritzelabs. 35.00, Löcher 10.50, Loch 2 10.50, Abs./Hinten 183.00, Abs./Vorne 71.00,
Halterungen Nein, Abstand mm 104.50, Gesamtlänge mm 254.00, Kupplungstyp Trocken, Ritzeltyp Stahl,
Wasserdicht Nein, Öldichtung Ja,
Bemerkung Alternative 116379
