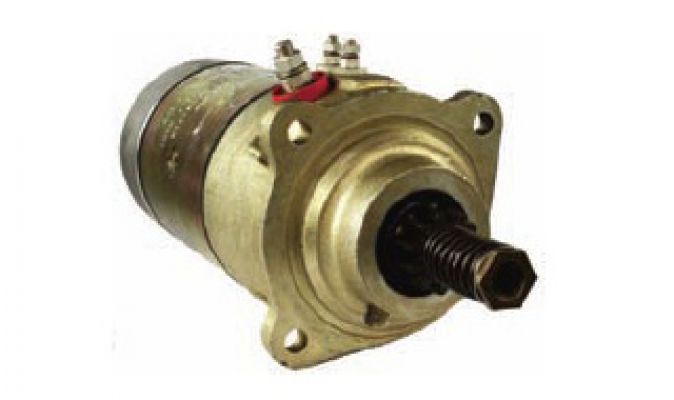

Anlasser 24V/7,8kw 11z f.CAV S115A24-11M CA45H24-125M CA45G24-125M CA45F24-125M 1327A501 1327A500 1321H936 1321G936
CAV S115A24-11M CA45H24-125M CA45G24-125M CA45F24-125M 1327A501 1327A500 1321H936 1321G936
Cummins 3975137 3910564
Servicing: Cummins
B+ M8, Total length 366.00,Drive type Steel, Gear type DD,Clutch type Dry, Mount. holes 3 (0),Insulated return A: 89.00 B: 48.00 mm
Gewicht: 13,74 kg
Volt 24, Kw 7.8, Anzahl der Zähne 11, Umlaufsrichtung CR, Getriebetyp DD, Montageflansch 89.00, Doppelt isoliert Ja,
B+ M8, No./mount. holes 3 (0), Ritzelabs. 48.00, Löcher 10.50, Loch 2 10.50, Loch 3 10.50, Abs./Hinten 275.00,
Abs./Vorne 90.50, Halterungen Nein, Abstand mm 89.85, Abstand 2 126.35, Abstand 3 89.45, Gesamtlänge mm 366.00,
Kupplungstyp Trocken, Ritzeltyp Stahl, Wasserdicht Nein, Öldichtung Nein
