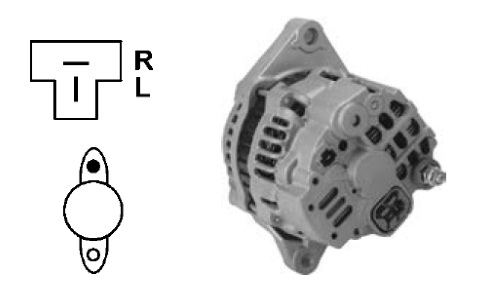

Lichtmaschine 12V/50A f.Case Traktor 7200 a7t02077c a7t02077a a7t02077 a7t02071c a7t02071c a7t02071a a7t02071 A007T02077C A007T

Lichtmaschine 12V/50A f.Case Traktor 7200 a7t02077c a7t02077a a7t02077 a7t02071c a7t02071c a7t02071a a7t02071 A007T02077C A007T

Lichtmaschine 12V/50A f.Case Traktor 7200 a7t02077c a7t02077a a7t02077 a7t02071c a7t02071c a7t02071a

a7t02071 A007T02077C A007T02077A A007T02077 A007T02071C A007T02071A A007T02071 31a68-00402

31a68-00401 31a68-00400

Bestellnummer: 112492

Ref.-Nr.: (Ref.-Nr.dienen lediglich Vergleichszwecken)

Replacing:

Mitsubishi A7T02077C A7T02077A A7T02077 A7T02071C A7T02071A A7T02071 A007T02077C

A007T02077A A007T02077 A007T02071C A007T02071A A007T02071

Vetus 31A68-00402 31A68-00401 31A68-00400 31A6800402 31A6800401 31A6800400

Servicing: Cub Cadet, Sole Diesel, Vetus

B+ M5, Grooves 1, Pulley P, Fan IF A: 43.50 B: 21.10 mm

Volt 14, Amp. 50, Terminal W, Abstand/Riemens. 43.50, Breite/Halterarm 21.10, Haltearmloch 10.50, Riemenspannloch pos.

60, Riemenspannloch M8, Riemens. D 68.50, Spur/Riemensch. 1, Radius 78.00, Radius 2 78.00, B+ Position M6,

 Position/B+ in min. 45, Umlaufsrichtung CR, Anschluss Nr. 1 pl194, Gesamtlänge mm 157.00,

 Riemens. Riemenscheibe, Reglertyp IR, Vak. Pumpe Ohne,
