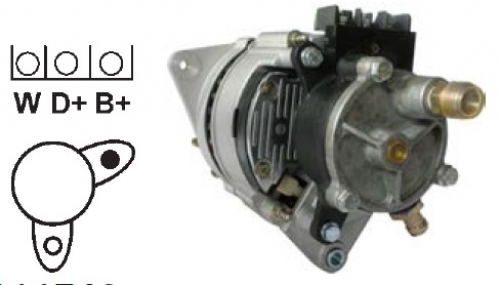

Lichtmaschine 12V/70A f.Magneti Marelli 63324293 54022720 R954F10300AA 924X10300AB 924FX10K359AA 924FX10K359 924F10K359AB
924F10K359AA 924F10300AB 5027848 5027810
Bestellnummer: 111742
Ref.-Nr.: (Ref.-Nr. dienen lediglich Vergleichszwecken)
Replacing:
Ford R954F10300AA 924X10300AB 924FX10K359AA 924FX10K359
924F10K359AB 924F10K359AA 924F10300AB 5027848 5027810
Lucas 54022708 54022689 54022610 54022588 54022583 54022582 54022575 54022565
54022564 54022557 54022555 54022547 54022537 54022495 54022396 54022394
24396 24374A 24293A 24293
Magneti Marelli 63324293 54022720
Servicing: Ford
B+ M6 Terminal: W Grooves: 4 Pulley: SP Fan: EF A: 34,00 B: 12,00 C: 83,00 mm
Volt 14, Amp. 70, Terminal W, Abstand/Riemens. 34.00, Breite/Halterarm 12.00, Abs./Aufhängung 83.00,
Haltearmloch 8.30, Riemenspannloch pos. 10, Riemenspannloch M8, Riemens. D 66.50, Spur/Riemensch. 4,
Radius 84.50, Radius 2 84.50, B+ Position M6, Position/B+ in min. 5, Umlaufsrichtung CR, Anschluss Nr. 1PL31,
W Anschlusstyp M5, Gesamtlänge mm 258.50, Riemens. Keilrippenriemenscheibe, Reglertyp IR, Vak. Pumpe VP
