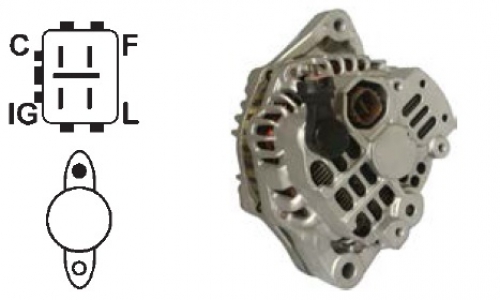

Lichtmaschine 12V/75A f.Mitsubishi A5TA5491 A5TA4591ZC A5TA4591 A5TA0991ZC A5TA0991 A5TA0091 A005TA5491 A005TA4591ZC A005TA4591

Lichtmaschine 12V/75A f.Mitsubishi A5TA5491 A5TA4591ZC A5TA4591 A5TA0991ZC A5TA0991 A5TA0091 A005TA5491 A005TA4591ZC A005TA4591

Lichtmaschine 12V/75A f.Mitsubishi A5TA5491 A5TA4591ZC A5TA4591 A5TA0991ZC A5TA0991 A5TA0091 A005TA5491

 A005TA4591ZC A005TA4591 A005TA0991ZC A005TA0991 A005TA0091

Bestellnummer: 113035

Ref.-Nr.: (Ref.-Nr. dienen lediglich Vergleichszwecken)

Replacing:

Honda AHGA44 AHGA35 AHGA24 31100-PEJ-004 31100-PEC-J71 31100-P2E-A02 31100-P2E-A01

31100PEJ004 31100PECJ71 31100P2EA02 31100P2EA01

Mitsubishi A5TA5491 A5TA4591ZC A5TA4591 A5TA0991ZC A5TA0991 A5TA0091 A005TA5491

A005TA4591ZC A005TA4591 A005TA0991ZC A005TA0991 A005TA0091

Servicing: Honda

B+ M6 Grooves: 4 Pulley: SP Fan: IF A: 90,25 B: 57,80 mm

Volt 14, Amp. 75, Abstand/Riemens. 90.25, Breite/Halterarm 59.50, Haltearmloch 10.50, Riemenspannloch pos. 60,

Riemenspannloch M8, Riemens. D 62.50, Spur/Riemensch. 4, Radius 80.00, Radius 2 85.00, B+ Position M6,

Position/B+ in min. 51, Umlaufsrichtung CR, Anschluss Nr. 1 PL65, Gesamtlänge mm 156.00,

 Riemens. Keilrippenriemenscheibe, Reglertyp IR, Vak. Pumpe Ohne,
