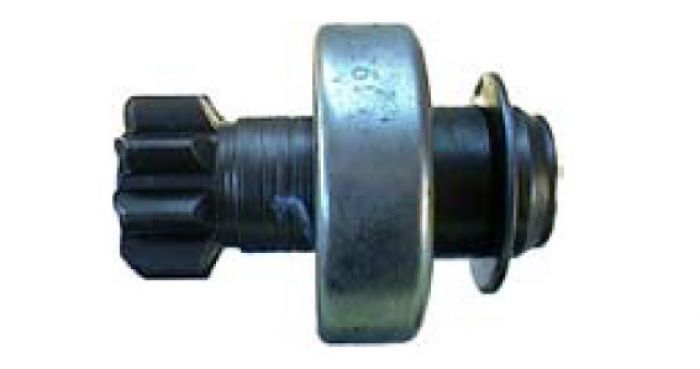

Ritzel ACR 9z f.Valeo Anlasser 594034 184795 D6RA17 D6RA19 D6RA27 D6RA29 D6RA34 D6RA50 D6RA54 D6RA60

Ritzel ACR 9z f.Valeo Anlasser 594034 184795 D6RA17 D6RA19 D6RA27 D6RA29 D6RA34 D6RA50 D6RA54 D6RA60

Ritzel ACR 9z f.Valeo Anlasser  594034 184795 D6RA17 D6RA19 D6RA27 D6RA29 D6RA34 D6RA50 D6RA54 D6RA60

Bestellnummer:139318

Ref.-Nr.: (Ref.-Nr. dienen lediglich Vergleichszwecken)

Replacing:

Valeo 594034 184795

Servicing:

Valeo d6ra17 d6ra19 d6ra27 d6ra29 d6ra34 d6ra50 d6ra54 d6ra60

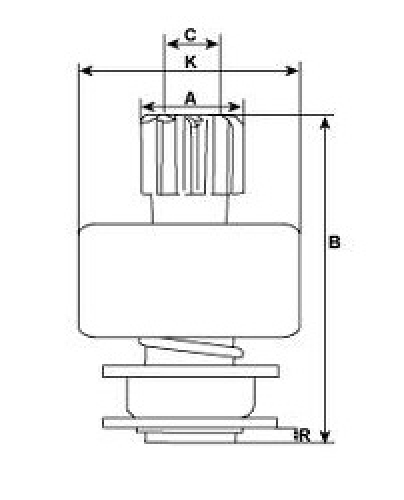

AD mm 29.65, Gesamtlänge mm 66.70, Anzahl der Zähne 9, Splines A 9, AD/Gehäuse mm 47.65,ID mm 12.00

Umlaufrichtung Gegen den Uhrzeigersinn,

ID 12.00, OD 29.65,OD/ housing 47.65, Total length 66.70,Splines A 9, No./ teeth 9, Rotation ACR
