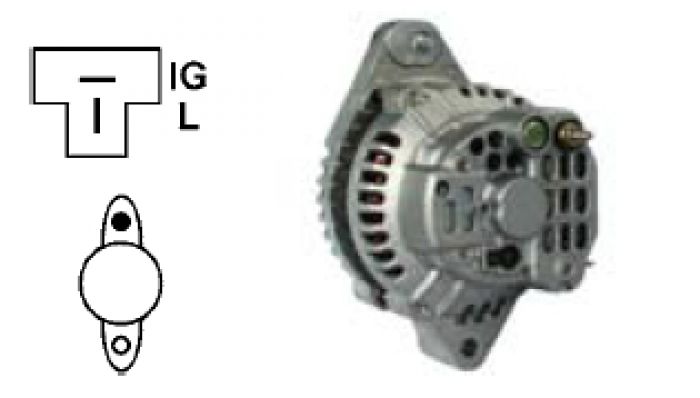

Lichtmaschine Generator Thomas Equipment Lader Traktor 12V/45A T133,T133S,T137,T173,T783,

T183HD,T203,T203HD (V1903-E,V2203-B Kubota Diesel)

Denso 101211-2841 100211-4390 100211-4180 100211-4120 100211-4080 100211-1402 100211-1401

Bestellnummer:110374

Ref.-Nr.: (Ref.-Nr.dienen lediglich Vergleichszwecken)

Servicing:

Daihatsu 27060-97725-000 27060-87705-000 27060-87704-000 28060-54401-000

Denso 101211-2841 100211-4390 100211-4180 100211-4120 100211-4080 100211-1402 100211-1401

Kubota 17369-64011

Yanmar 119254-77200

Servicing: Daihatsu

Grooves 1, Total length 169.00, Pulley P,Fan IF A: 43.50 B: 19.00 mm

 Volt 14, Amp. 45, Abstand/Riemens. 43.50, Breite/Halterarm 19.00, Haltearmloch 10.50, Riemenspannloch pos. 60,

 Riemenspannloch M8, Riemens. D 63.00, Spur/Riemensch. 1, Radius 78.00, Radius 2 75.00, B+ Position M5, Position/B+ in min. 35,

 Umlaufsrichtung CR, Gesamtlänge mm 169.00, Riemens.Riemenscheibe, Reglertyp IR, Vak. Pumpe Ohne

KUBOTA

LOADERS

R510 90-On Kubota V2203DI 50HP Dsl w/Denso Alternator ND 45 12 100211-6800 AND0211
R520BU-1A 95-On Kubota V2203 49HP Dsl w/Denso Alternator ND 45 12 100211-6800 AND0211

MISC. EQUIPMENT

F2803 86-On w/Denso Alternator ND 45 12 100211-6800 AND0211

V1702 Engine 91-On Kubota # 17356-64012 ND 45 12 100211-6800 AND0211

TRACTORS - COMPACT

L4350DT 97-91 Kubota V2203DI 47.5HP Dsl w/Denso Alternator ND 45 12 100211-6800 AND0211
L4350HDT 97-91 Kubota V2203DI 47.5HP Dsl w/Denso Alternator ND 45 12 100211-6800 AND0211
L4350MDT 97-91 Kubota V2203DI 47.5HP Dsl w/Denso Alternator ND 45 12 100211-6800 AND0211

L4850HDT 97-91 Kubota F2503DI 53HP Dsl w/Denso Alternator ND 45 12 100211-6800 AND0211

L5450DT 97-91 Kubota F2803DI 54.5HP Dsl w/Denso Alternator ND 45 12 100211-6800 AND0211
L5450HDT 97-91 Kubota F2803DI 54.5HP Dsl w/Denso Alternator ND 45 12 100211-6800 AND0211

THOMAS EQUIPMENT
SKID STEER LOADERS YEAR ENGINE MORE INFO MFG AMP VOLT OEM # PART #
T133S 98-95 Kubota V1903B Diesel Denso System ND 45 12 100211-6801 AND0211
T173 99-89 Kubota V2203B Diesel Denso System ND 45 12 100211-6801 AND0211
T183 94-89 Kubota V2203B Diesel Denso System ND 45 12 100211-6801 AND0211
T203 94-89 Kubota V2203B Diesel Denso System ND 45 12 100211-6801 AND0211
