Ritzel 11z Bronze f.Ford Anlasser D4HF11350BA C9HE11350A 40MT 42MT 50MT C3TF11000A C3TZ11001A c5tz11002c C6TF11001A

Ritzel 11z Bronze f.Ford Anlasser D4HF11350BA C9HE11350A 40MT 42MT 50MT C3TF11000A C3TZ11001A

c5tz11002c C6TF11001A

Bestellnummer:130539

Ref.-Nr.: (Ref.-Nr. dienen lediglich Vergleichszwecken)

Replacing:

Caterpillar 1p2508

Delco Remy 830620 800066 1976884 1967779 1960370 1955777 1952083 1945487 1935487 1894211

Facet 480321 e480321

Fiat 852763 851075

Ford D4HF11350BA C9HE11350A C8DF11350A C3DE11350A C2DZ11350A

Leece Neville 77600

Servicing:

Delco Remy 40MT 42MT 50MT 10461024 10461030 10461041 10461043 10461045 10461047 10461048

10461054 10461068 10478800

Ford 40MT 42MT 50MT C3TF11000A C3TZ11001A c5tz11002c C6TF11001A

Leece Neville 40MT 42MT 50MT

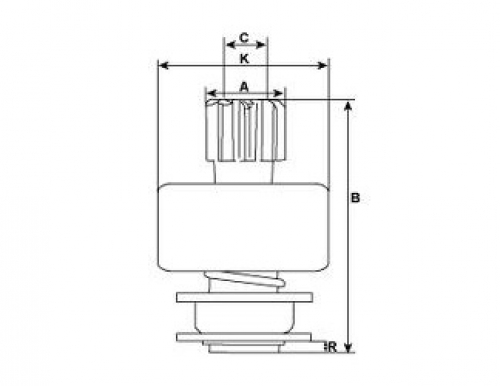

AD 56.50, Gesamtlänge 120.40, Anzahl der Zähne 11, Splines A 19, Service 40MT, 42MT, 50MT,

AD/Gehäuse 58.00,Umlaufrichtung CR, Bemerkungen Bronze., ID 15.90, AD/Zahn 56.50

ID 15.90, OD 56.50,OD/ housing 58.00, Total length 120.40,Shaft length 15.90 (5/8"),

Splines A 19,No./ teeth 11, Rotation CR Bronze
